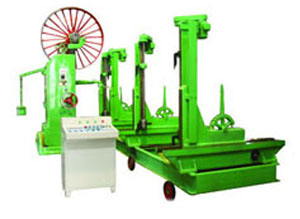

MJ3212B型1270mm木工自動跑車
MJ3212B 1270mm Woodworking Band Sawing Machine
MJ3212B 1270mm Woodworking Auto Carriage
●主要性能與特點
本機床是目前國同的縱割原木的設備,以單片微型計算機為核心,外圍電路采用大規格集成電路以及紅外線數顯控制系統,可根據需要設定最佳下料方案,誤差自動修正。該機床操作方便靈活,安全可靠厙工木材精度高,大大降低了操作工人的勞動強度,是各類大、中型木材加工企業和科技木生產企業的加工設備?筛鶕用戶要求配置地下拖動牽引裝置或鏈條鏈輪傳動裝置。
●Main function and features
This machine is a advanced equipment of vertical sawing wood in Chinese market.It is used monolithic micro engine as its centre.Electric circuit is used large-scale integrated circuit and metascope as its control system.We can design the best dischaege way according to the demands. It can coorect error itself.So it is convenient,nimble and reliable of operation,accuracy of aswing wood is high.So reduce labor intensity of workers and is a main processing equipment which can not be short of in the woodworking shop for all kinds of large and middle wood factory.
We can supply underground tow device or drive trough chain and sprocket according to user's requirements.
鋸輪直徑和寬度 Diameter and width of saw wheel |
mm |
1270x160 |
鋸輪轉速 Rotating speed of saw wheel |
r/min |
750 |
兩鋸輪最大中心距 Max. centre distance between two saw wheels |
mm |
2500 |
最大可鋸木直徑 Max.diameter of saw-log |
mm |
1200 |
跑車可擱木最大直徑 Max.dia.For putting wood on carriage |
MJ3215B 型1500mm MJ3215B 1500mm |
Mm |
1500 |
MJ3212B型1270mm MJ3212B 1270mm |
mm |
1200 |
最大鋸木長度 |
Mm |
8000 |
主電機功率 |
Kw |
45~55 |
